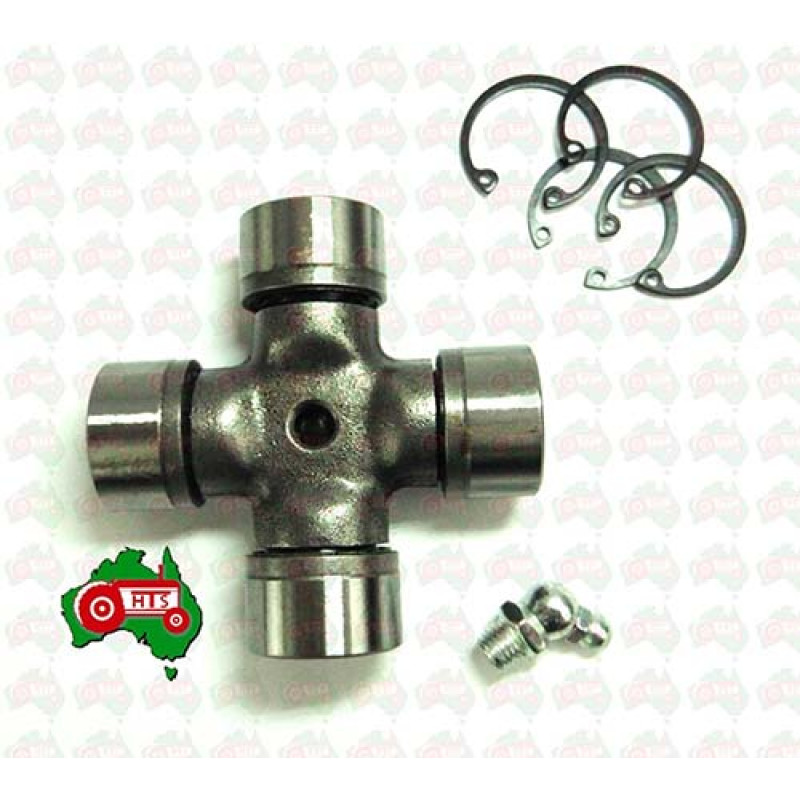

Universal Joint Cross
Heavy wall bearing cups - suitable for lightly damaged yokes
Latest long life triple lip internal seals
Please see photo for measurements :
This is for 1 x universal joint cross with an outside circlip. E.g : The circlip is on the outside of the yoke and not the inside.

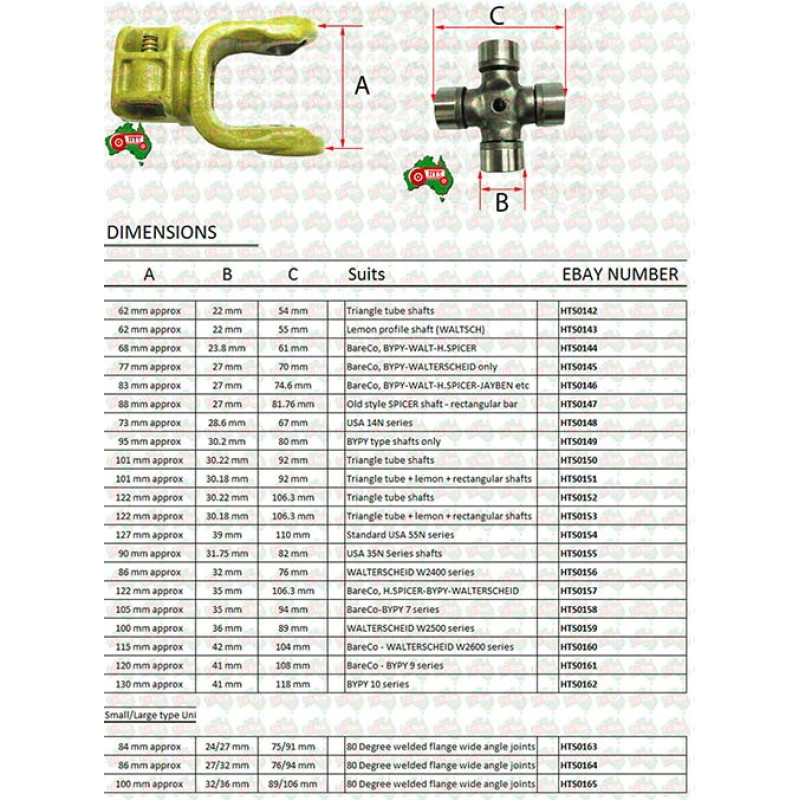

Please see photo for quick reference guide on finding the correct universal joint to suit your shaft. Type the ebay number in your top search bar. E.g : HTS0142 will take you to the 22x54 mm cross. Please note that "A" is an approximate measurement. "B" and "C" are accurate. If there is a 0.04 mm (1 1/2 thou) difference between universals and you are in doubt please choose the bigger one.

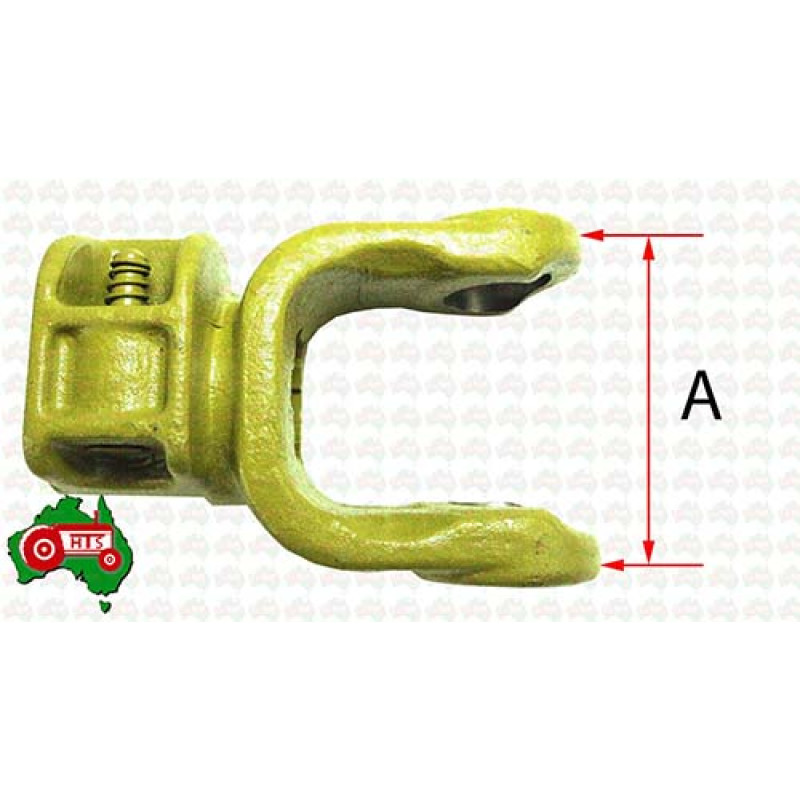

Please note that the yoke is not included
A035
Heavy wall bearing cups - suitable for lightly damaged yokes
Latest long life triple lip internal seals

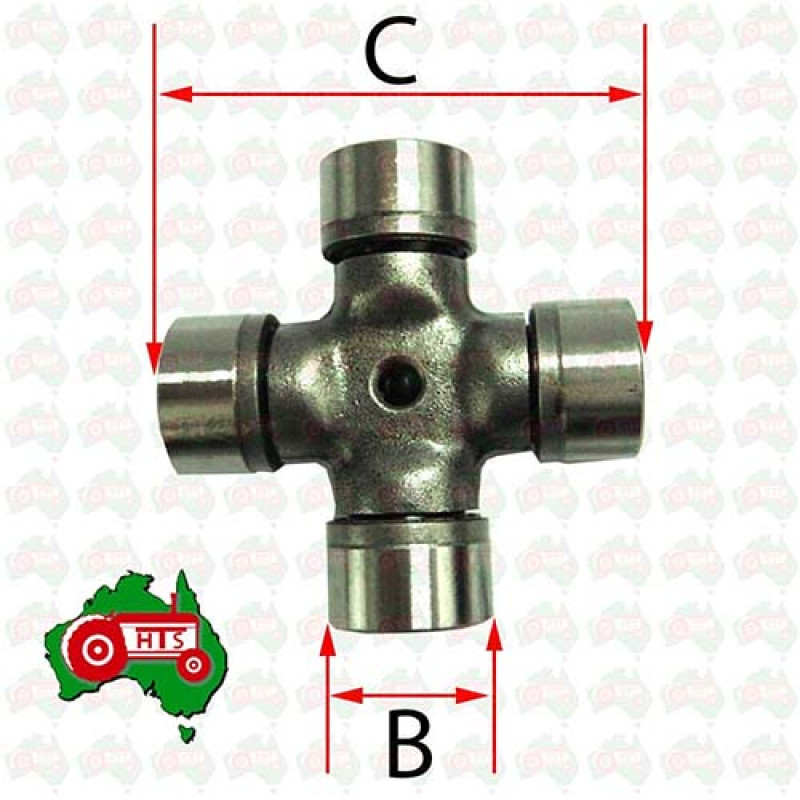

Please see photo for measurements :
A : 86 mm approximately
B : 32 mm
C : 76 mm
This is for 1 x universal joint cross with an outside circlip. E.g : The circlip is on the outside of the yoke and not the inside.
Please see photo for quick reference guide on finding the correct universal joint to suit your shaft. Type the ebay number in your top search bar. E.g : HTS0142 will take you to the 22x54 mm cross. Please note that "A" is an approximate measurement. "B" and "C" are accurate. If there is a 0.04 mm (1 1/2 thou) difference between universals and you are in doubt please choose the bigger one.
Please note that the yoke is not included
A035
PTO Uni Universal Cross X Joint 32mm x 76mm WALTERSCHEID W2400 Driveshaft
- Product Code: A035
- Availability: In Stock
-
AU$38.01
