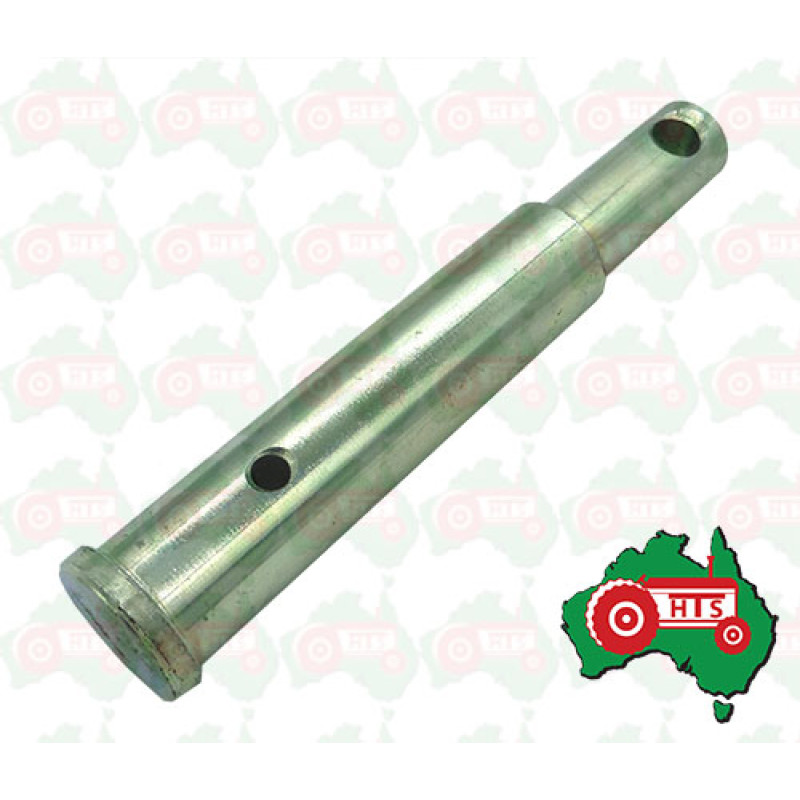

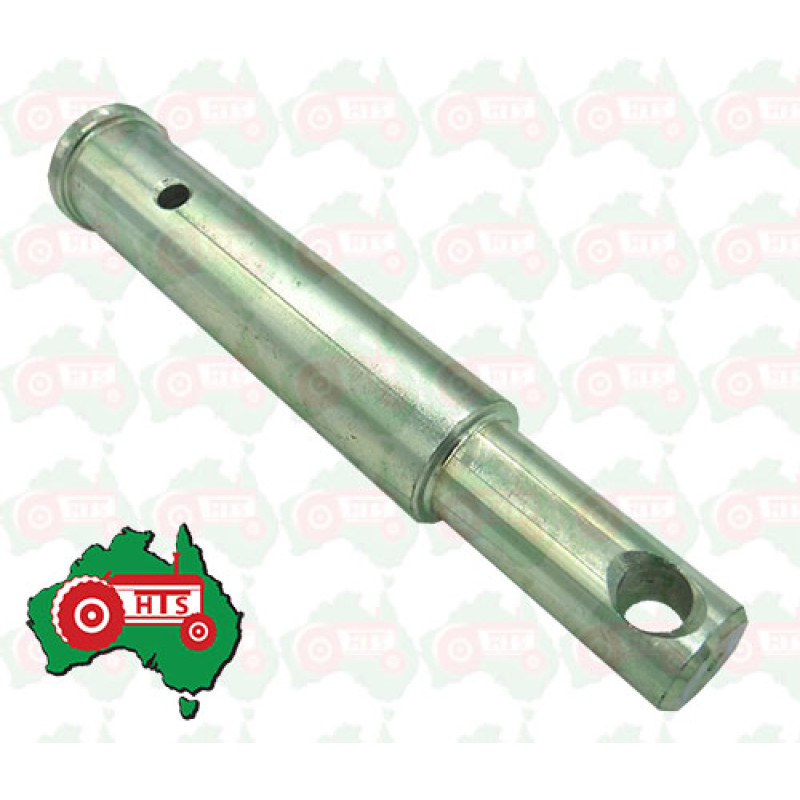

Tractor Lower Link Implement Pin Cat 1&2

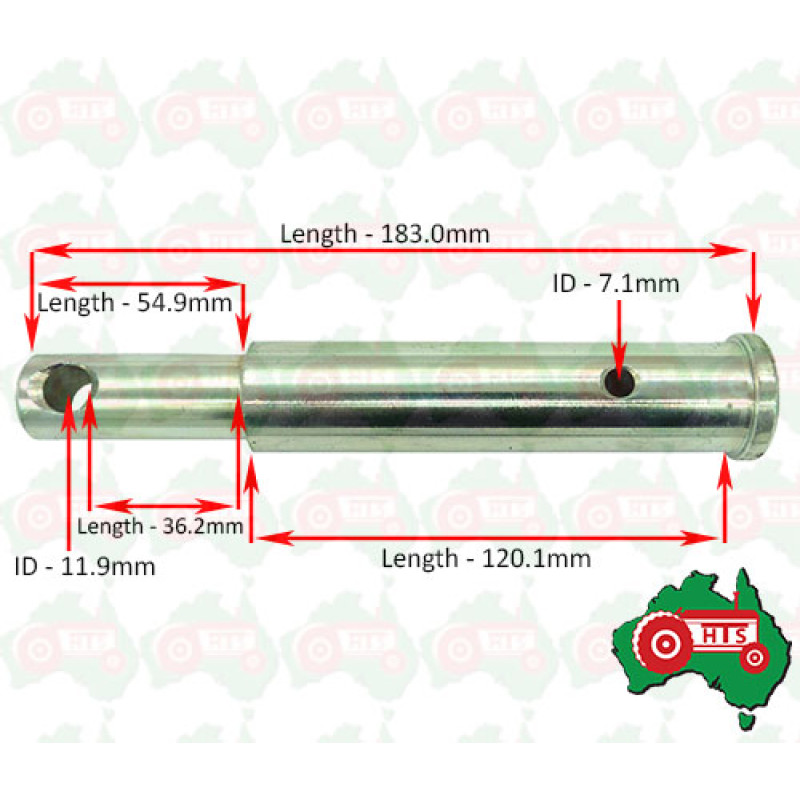

Description & Approximate Sizes:

• 1 x Lower Link Implement Pin
• Length - 183.0mm (7 3/16")
• ID Big End -7.1mm (1/4")
• ID Small End - 11.9mm (1/2")
• OD Big End - 28.1mm (1 1/8")
• OD Small End - 21.9mm (7/8")
• Category - 1/2

To Suit:

• Allis Chalmers - 5040, 5045, 5050
• Case IH/International Harvester - AVJ55, AVJ60, AVJ70
• Fiat - 450, 480, 500, 540, 55-46, 55-56, 550, 60-46, 60-56, 600, 640, 65-46, 65-56, 70-56
• Ford/New Holland - 3010S, 4010S, 5010S
• Long Tractor - 350, 360, 445, 445DT, 445SD, 460, 460DT, 460SD, 510, 510DT, 560, 560DT, 560DTE, 610, 610DT, 610DTE
• Universal Tractors - 1033, 300, 320, 340, 350, 445, 500, 550, 640
• White Oliver - 1250, 1250A, 1255, 1265, 1270, 1355, 1365, 1370, 2-50, 2-60

Alternative Numbers

• Allis Chalmers - 72090166
• Case IH/International Harvester - 4954461
• Fiat - 4954461, 596121
• Long Tractor - TX10801
• Universal Tractors - 40 27 124, 4027124
• White Oliver - 72090166, 677472A, 30-3014088

S69889
